- 熱固性外殼

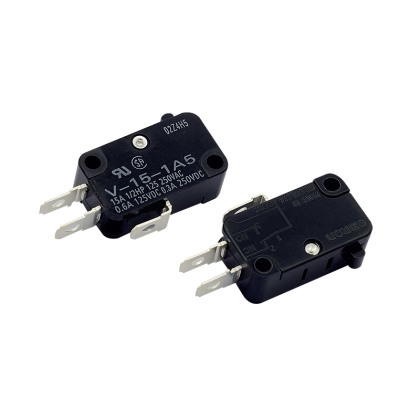

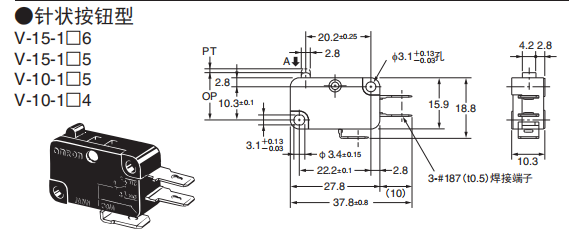

驅動桿 端子規格 接觸規格 動作力(OF)最大 15A 10A 耐熱型 15A 10A 針狀按鈕型 焊接端子(A) SPDT 3.92N V-15-1A6 --- V-15-1A6-T --- SPST-NC V-15-2A6 --- --- --- SPST-NO V-15-3A6 --- --- --- SPDT 1.96N V-15-1A5 V-10-1A5 V-15-1A5-T V-10-1A5-T SPST-NC V-15-2A5 V-10-2A5 --- --- SPST-NO V-15-3A5 V-10-3A5 --- --- SPDT 0.98N --- V-10-1A4 --- V-10-1A4-T SPST-NC --- V-10-2A4 --- V-10-2A4-T SPST-NO --- V-10-3A4 --- V-10-3A4-T #187接線片端子(C2) SPDT 3.92N V-15-1C26 --- V-15-1C26-T --- SPST-NC V-15-2C26 --- --- --- SPST-NO V-15-3C26 --- --- --- SPDT 1.96N V-15-1C25 V-10-1C25 V-15-1C25-T V-10-1C25-T SPST-NC V-15-2C25 V-10-2C25 --- --- SPST-NO V-15-3C25 V-10-3C25 --- --- SPDT 0.98N --- V-10-1C24 --- V-10-1C24-T SPST-NC --- V-10-2C24 --- --- SPST-NO --- V-10-3C24 --- --- #250接線片端子(C) SPDT 3.92N V-15-1C6 --- V-15-1C6-T --- SPST-NC V-15-2C6 --- --- --- SPST-NO V-15-3C6 --- --- --- SPDT 1.96N V-15-1C5 V-10-1C5 V-15-1C5-T V-10-1C5-T SPST-NC V-15-2C5 V-10-2C5 --- --- SPST-NO V-15-3C5 V-10-3C5 --- --- SPDT 0.98N --- V-10-1C4 --- V-10-1C4-T SPST-NC --- V-10-2C4 --- --- SPST-NO --- V-10-3C4 --- --- - 額定值
項目
型號 額定電壓阻性負載V-21 AC250V 21A DC125V
DC250V0.6A
0.3AV-16 AC250V 16A DC125V
DC250V0.6A
0.3AV-15 AC250V 15A DC125V
DC250V0.6A
0.3AV-10 AC250V 10A DC125V
DC250V0.6A
0.3AV-21(IN) DC30V 12 A 注: 上述額定值是在下面的條件下試驗測得的數值。
環境溫度：20±2℃
環境溫度：20±2℃
操作頻率：30次/分鐘
